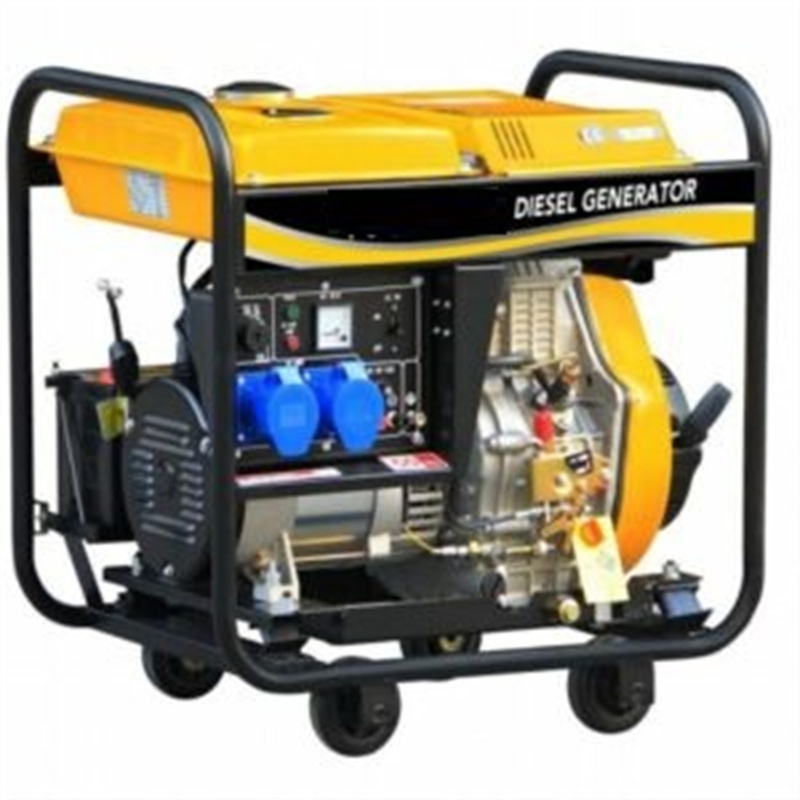

Air cooled open type diesel generator
Detailed Information
The generator set adopts an open-frame design, and the entire device can be installed on a solid metal base. It mainly includes diesel engine, generator, fuel system, control system and cooling system and other components.
Electric Features
The diesel engine is the core component of the generator set, which is responsible for burning diesel to generate power, and is connected with the generator mechanically to convert the power into electrical energy. The generator is responsible for converting mechanical energy into electrical energy and outputting stable alternating current or direct current.
The fuel system is responsible for providing diesel fuel and injecting fuel into the engine for combustion through the fuel injection system. The control system monitors and controls the entire power generation process, including functions such as start, stop, speed regulation and protection.
The air-cooled heat dissipation system dissipates heat through fans and heat sinks to keep the operating temperature of the generator set within a safe range. Compared with the water-cooled generator set, the air-cooled generator set does not need an additional cooling water circulation system, the structure is simpler, and it is less prone to problems such as cooling water leakage.
The air-cooled open-frame diesel generator set has the characteristics of small size, light weight, and convenient installation. It is widely used in various occasions, such as construction sites, field projects, open-pit mines, and temporary power supply equipment. It can not only provide stable and reliable power supply, but also has the advantages of energy saving, environmental protection, low noise, etc., and has become the first choice of power generation equipment for many users.
|
Model |
DG11000E |
DG12000E |
DG13000E |
DG15000E |
DG22000E |
|
Max Output(kW) |
8.5 |
10 |
10.5/11.5 |
11.5/12.5 |
15.5/16.5 |
|
Rated Output(kW) |
8 |
9.5 |
10.0/11 |
11.0/12 |
15/16 |
|
Rated AC Voltage(V) |
110/120,220,230,240,120/240,220/380,230/400,240/415 |
||||
|
Frequency(Hz) |
50 |
50/60 |
|||
|
Engine Speed(rpm) |
3000 |
3000/3600 |
|||
|
Power Factor |
1 |
||||
|
DC Output(V/A) |
12V/8.3A |
||||
|
Phase |
Single Phase or Three Phase |
||||
|
Alternator Type |
Self- Excited, 2- Pole, Single Alternator |
||||
|
Starting System |
Electric |
||||
|
Fuel Tank Capacity (L) |
30 |
||||
|
Continuous Work(hr) |
10 |
10 |
10 |
9.5 |
9 |
|
Engine Model |
1100F |
1103F |
2V88 |
2V92 |
2V95 |
|
Engine Type |
Single-Cylinder, Vertical,4-Stroke Air-Cooled Diesel Engine |
V-Twin,4-Stoke, Air Cooled Diesel Engine |
|||
|
Displacement(cc) |
667 |
762 |
912 |
997 |
1247 |
|
Bore×Stroke(mm) |
100×85 |
103×88 |
88×75 |
92×75 |
95×88 |
|
FuelConsumptionRate(g/kW/h) |
≤270 |
≤250/≤260 |
|||
|
Fuel Type |
0# or -10# Light Diesel Oil |
||||
|
Lubrication Oil Volume(L) |
2.5 |
3 |
3.8 |
3.8 |
|
|
Combustion System |
Direct Injection |
||||
|
Standard Features |
Voltmeter, AC Output Socket, AC Circuit Breaker, Oil Alert |
||||
|
Optional Features |
Four Sides Wheels, Digital Meter, ATS, Remote Control |
||||
|
Dimension(LxWxH)(mm) |
770×555×735 |
900×670×790 |
|||
|
Gross Weight(kg) |
150 |
155 |
202 |
212 |
240 |
